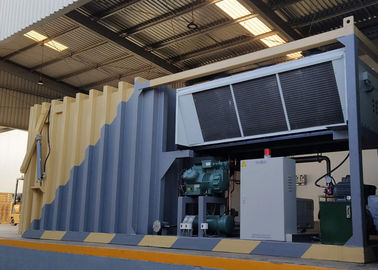

72KW Vacuum Cooler For Vegetables
Vacuum Cooler For Vegetables Brief Description
After the product is harvested and packaged, it is placed on pallets for shipping. The pallets are loaded into a vacuum tight chamber and the process begins. The equipment drops the pressure inside the vessel by removing air through vacuum pumps. Once the level of vacuum reaches the "flash point" moisture and heat are removed from the product in the form of water vapor. The lower the pressure inside the chamber, the lower the boiling point of water. As the vacuum goes deeper, more water vapor is removed and the product temperature is reduced until the desired temperature is achieved.
Vacuum Cooler Models&Specifications
| Vegetables/Flowers/Fruits Vacuum Cooler Models& Specifications | |||||
| Model No. | Processing Capacity | Inside Chamber mm |
Produce Weight kg |
Electricity Type | Total Power kW |
| AVC-500 | 1 Pallet | 1,400x1,400x2,200 | 300-500 | 220V-660V/3P | 31 |
| AVC-1000 | 2 Pallets | 2,600x1,400x2,200 | 800-1,000 | 220V-660V/3P | 39 |
| AVC-1500 | 3 Pallets | 3,900x1,400x2,200 | 1,200-1,500 | 220V-660V/3P | 47 |
| AVC-2000 | 4 Pallets | 5,200x1,400x2,200 | 1,500-2,000 | 220V-660V/3P | 72 |
| AVC-3000 | 6 Pallets | 6,500x1,400x2,200 | 2,300-3,000 | 220V-660V/3P | 98 |
| AVC-4000 | 8 Pallets | 5,300x2,600x2,200 | 3,200-4,000 | 220V-660V/3P | 121 |
| AVC-5000 | 10 Pallets | 6,600x2,600x2,200 | 4,200-5,000 | 220V-660V/3P | 145 |
Vacuum Cooler For Vegetables Features
1. Green Cooling: Energy saving &Optimal cooling efficiency
2. Radily Cooling: From 30°C to 3°C in 20-30 Minutes
3. Extend Shelf Life: Stay freshness and Nutrition Longer
4. Accurated Control: PLC combine with sensitive sensors&valves
5. Easy Operation Design: Automatic Control work with touch screen
Vacuum Cooler For Vegetables Advantages
1. Minimized production losses
2. Improved economic of harvest operations
3. Minimized losses during marketing
4. Improved utilization by consumer
Vacuum Cooler For Vegetables Application Field
1. Vegetables(All Leafy Vegetables/Broccoli/Cauli Flower/Mushrooms/Sweet corn/ etc.)
2. Flowers(Fresh cut flowers)
3. Fruits(Berries/Cherries etc.)
Customized Options of Our Vacuum Cooler
1. Condensor Options: Air cooling/Water cooling /Evaporative
2. Function Options: Hydro system&Water spray system
3. Door Options: Manual Door/Horizontal Sliding Door/ Upwards Lifting Door/ Vertical Lifting Door
|
|
